Launch 27

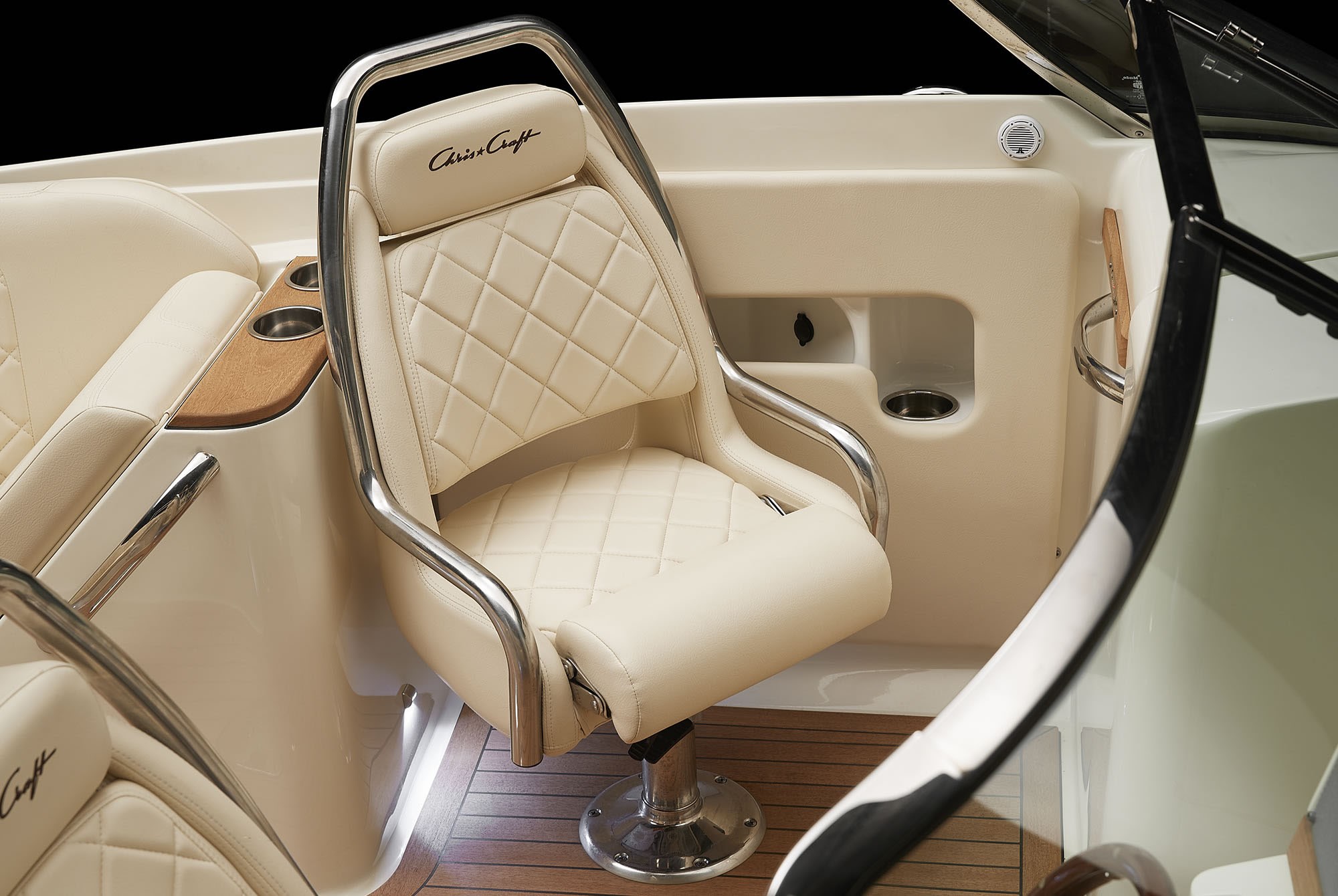

The Position of Power.

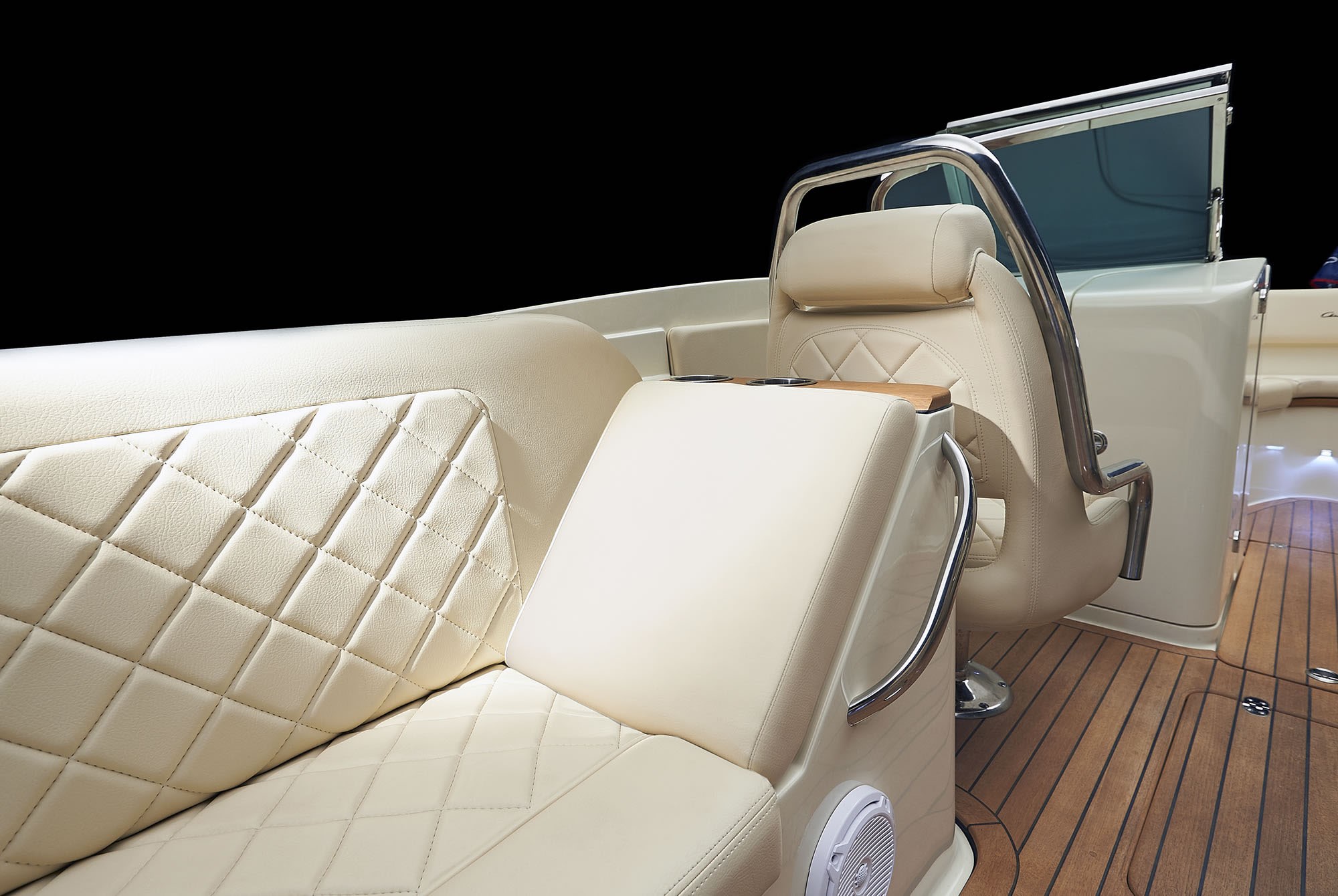

A wide captain’s chair puts you in control behind gleaming gauges and a rich, mahogany steering wheel. The luxurious diamond-pattern stitching is complemented by a thick stainless steel bar. And a thigh bolster brings added height and visibility.

TECHNICIAL SPECIFICATIONS / Launch 27

Length Overall (w/ Swim Platform)	26'8"	8.13 m
Length Overall (w/o Swim Platform)	24'10"	7.57 m
Centerline Length	23'8"	7.21 m
Waterline Length	21'8"	6.6 m
Hull Length	25'3"	7.7 m
Beam Maximum	8'6"	2.6 m
Beam Transom	7'7"	2.31 m
Beam Waterline	5'7"	1.7 m
Center of Gravity (Fwd of Transom keel)	5'8"	1.73 m
Dry Weight	6,000 lbs	2,722 kg
Fuel Capacity	77 gal	291 ltr
Water Capacity	9 gal	34 ltr
Deadrise	20 deg
Transom Angle	13 deg
Draft, Prop Raised	17"	43 cm
Draft, Prop Lowered	36.5"	92 cm
Freeboard Forward	40"	1.01 m
Freeboard at Half Length	34"	86 cm
Freeboard Aft	24.5"	62 cm
Height Overall	5'9"	1.75 m
Bridge Clearance Windshield	53"	1.35 m
Maximum Persons	10
